4 Popular Phone Repair Microscopes

 It was mentioned last time that microscopes play an important role in professional cell phone repairs. So today, phonefix recommends 4 microscopes suitable for mobile phone repair.


3.5X-90X Black Double Arm Zoom Trinocular Stereo Microscope

3.5X-90X Trinocular Stereo Microscope with 10X Wide Angle Eyepiece and HDMI Camera 0.5X C-mount 0.5X 2.0X Barlow Lens. Not only for mobile phone repair workers welding, but also for biological observation.

Function:

1. Equipped with 7X-45X stereo zoom microscope, black finish;

2. Ultra-wide field optics provide crystal stereo erection;

3. Confocal trinocular stereo microscope observes clear images simultaneously through the trinocular port and eyepiece; 2-1/2" (65mm) ultra-wide field of view and 8" (200mm) working distance.

4. The black version of the confocal stereo microscope has a unique confocal optical system and an adjustable trinocular port to achieve a sharply focused image on your video screen while getting a sharp, focused image through the eyepiece.

With trinocular port design, the magnification can reach 3.5X-90X, which can meet most welding and specimen observation requirements. Therefore, it can be used in mobile phone repair, medical equipment repair, school biology laboratory, etc.


7X-45X Binocular Stereo Zoom Microscope

This is an excellent binocular stereo microscope with a 56-LED ring light with adjustable intensity, ultra-wide field optics and 7X-45X zoom magnification and cold light illumination system. It is the ideal instrument for industrial testing and/or biological laboratory applications.

Function:

1. 7X-45X zoom magnification, the image is clear and sharp

2. 4" (100mm) working distance

3. Sturdy all-metal strut bracket

4. Powerful 56-LED Ring Light with Dimmer

5. 360-degree rotatable 45-degree tilt binocular

This binocular stereo microscope is ideal for gemologists, manufacturing engineers, dental lab technicians, and anyone in the electronics and semiconductor industries.

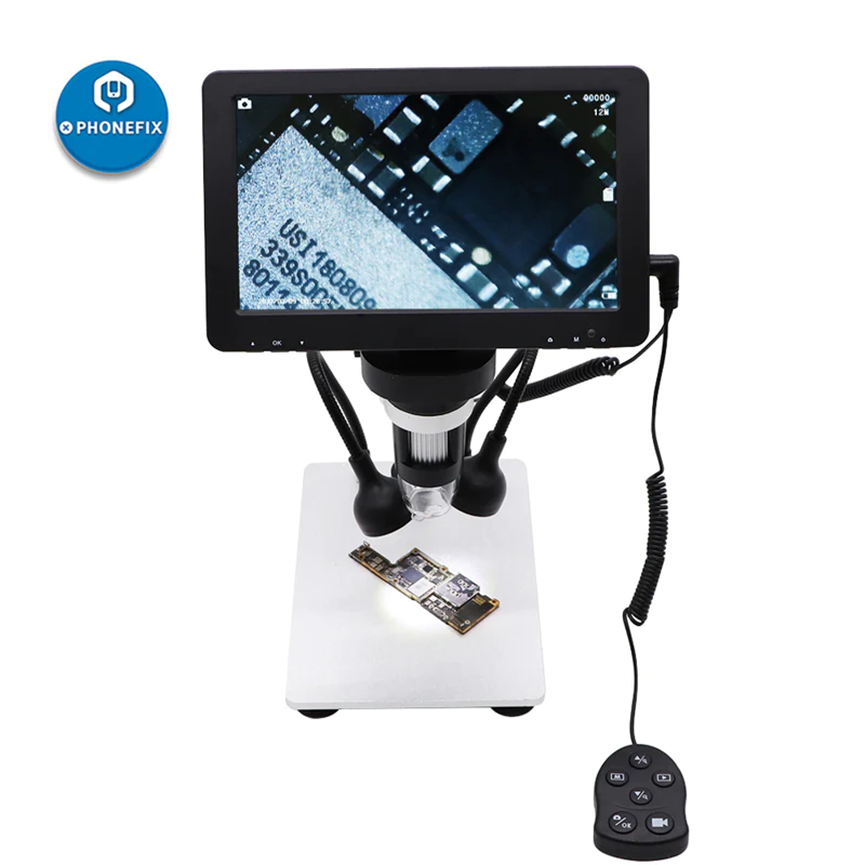

DM9 1200X 12MP USB Digital Microscope

DM9 1200X 12MP USB Digital Microscope with 7" HD Display and Metal Stand and LED Light for Cell Phone Soldering Repair, DM9 HD 1200X USB Digital Microscope, 1200X 12MP Electronic Endoscope Magnifier for Cell Phone PC PCB Soldering Inspection Repair.

Function:

1. Video resolution: There are 3 formats to choose from: 1080FHD, 1080P, 720P.

2. Camera resolution: There are 5 formats to choose from: 12M, 10M, 8M, 5M, 3M.

3. Continuous shooting: After enabling this option, you can take 5 continuous shots.

4. Exposure compensation: There are 13 exposure compensation values ​​from +2.0 to -2.0 to choose from.

5. Date Label: After selecting a date or date/time, photos and videos will be marked with the date or date and time.

6. Playback mode: Users can view the photos or video files they need according to their needs. Long press the menu key on the device or the switch key on the remote control to switch modes.

Complete functions, clear imaging, exquisite workmanship, large-screen display, external remote control, easy operation, external LED fill light, self-replaceable battery, can be connected to a computer, support up to 12 languages, etc. It is a mobile phone repair worker. Good selection of products.

3.5X-180X Green Trinocular Zoom Stereo Microscope

7X-45X Confocal Trinocular Stereo Microscope Continuous Zoom WF10X/20/WF20X/10 Eyepiece Auxiliary Objective. Equipped with a high-definition camera interface, this design eliminates the need to disable the eyepiece port to use the photo port, but instead routes the image to your imaging system.

Function:

45-degree tilt trinocular parfocal head with ultra-wide field of view High eyepoint eyepieces

High resolution with excellent flatness and contrast

Sharp stereo upright images over a wide field of view Crystal clear original true color images

Precise alignment ensures fatigue-free viewing

30mm ultra-wide-angle WF10X eyepiece, 20mm field of view

This is the best confocal green trinocular zoom stereo microscope repair tool, suitable for beginners to start their own mobile phone PCB soldering mobile phone repair business.


Today's mobile phone repair tool microscope is shared here. If you want to know more about phonefix, please comment below.
