JCID RBOX Bus Analyzer | Phonefix Review

 Whether you are a professional mobile phone repair technician or an electronics enthusiast, you must be very familiar with JCID. Today we will review the new products — JCID RBOX Bus Analyzer Phone Signal Faults Detection Repair Tool.

What are the features of JCID RBOX Bus Analyzer?

·Identifying parts of the failure points of signal quickly, matching with JC Drawing for use.

·Give one year JC drawing card for free, enjoy iPhone and Android measurement data for ever.

·Paid users of JC Drawing can use iPhone/Android data freely forever, no need other service charge.

·It comes with buttons, fast and convenient, the standard package with drive-by-wire probes, flying less wires, make measurement easier and more effective.

·JCID RBOX Bus Analyzer Match with JC Drawing build the smart maintenance system for using identify parts of the failure points of signal quickly.

How to Use JCID RBOX Bus Analyzer?

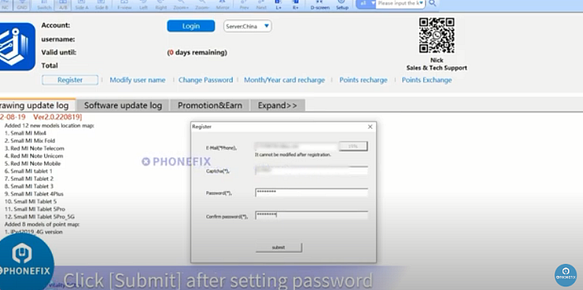

1.Open the JCID official website, click the download page to find the JC drawing containing data, double-click to download, and click to enter the JC drawing registration to activate after downloading.

2.Connect the RBOX Bus Analyzer to the computer with a USB Cable, then open the GC drawing to find the motherboard drawing that needs repairing Find the brand and model of the mobile phone, select the motherboard copper and double-click to enter the lower right corner of the drawing interface Find the device model in the upper right corner of the drawing Click Help to open the professional The operating instructions given by the person in text form, and then follow the instructions.

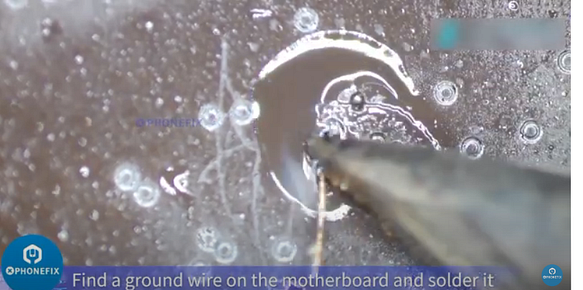

3.If the connection or use is successful, click the connection to call the driver, click the driver and press the Enter key to display that the model has two buses that will affect the signal transmission. All buses need to be checked before the fault point is detected. Select a bus and click SDA Click scl V point 1.8 3.3 to jump to the corresponding point, use the Soldering Station to directly solder the coaxial cable, find a ground wire on the motherboard according to the point, and solder it, this is the effect after flying four wires, and then connect the coaxial cable The cable is buckled on the corresponding port on the motherboard.

4.Click to start, the abnormal parts will be marked, click on the abnormal parts to jump to its location and it will be marked in red, the normal ones will be marked in blue, start working after finding the abnormality, use dual probes for data detection, and the bus adapter at the probe interface Switch for switching between 2C and RFFE.

Evaluation video:



The above is today’s sharing, I hope it can help you, if you are interested in mobile phone repair tools, please fllow Phonefix.
